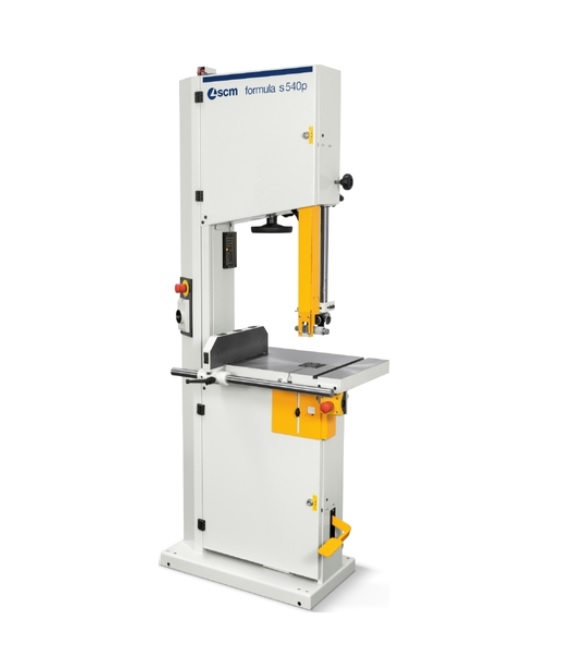

SCM Formula S 540P Bandsaw
The S 540P is the big brother of the S 440p but with a larger throat for increased resaw capacity, this is the machine for you. With all of the features of its smaller brother, this bandsaw is for when you need to resaw up to 20% of material. With the right blade, you can easily make your veneers from those big resaw project pieces!
- Cast-iron squaring fence for maximum stability and cutting repeatability
- Rack and pinion lifting system of the guide unit for a fast and safe setup
- Saw blade tensioning indicator that guarantees immediate and continuous control of the value
- Cast-iron work table with lapped surface for maximum smoothness of the piece
- Full disc cast iron wheels to keep the blade speed constant during machining
- Top and bottom blade guide with ball bearings to minimize lateral movements of the blade and therefore increase the precision of the cut
- Cleaning brush on bottom wheel to reduce the wheel wear
Additional Information
Solidity and sturdinessVery thick, cast iron wheels, as well as the worktable, running on sealed for life ball bearings.
Safety firstTotal safety machining with telescopic protections with rackwork to the blade.
Perfect resultsA perfect cut result is assured by the top and bottom high precision blade guides. Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.
| TECHNICAL DATA | ||
| Worktable dimensions | mm | 520 x 720 |
| Cast iron saw wheels diam. | mm | 540 |
| Saw wheels width | mm | 38 |
| Max. cutting height (inches) | mm | 500 (20″”) |
| Max. cutting width | mm | 520 |
| Worktable tilting (CE) | 0° ÷ 45° (20°) | |
| Longueur max. lame | mm | 4560 |
| Standard three-phase motor S1 400V 50Hz |
2,2kW 3hp | |
| Standard three-phase motor S1 220V 60Hz |
3,6kW 4,8hp | |
| Exhaust outlet diameter | mm | N° 2 x 120 |
