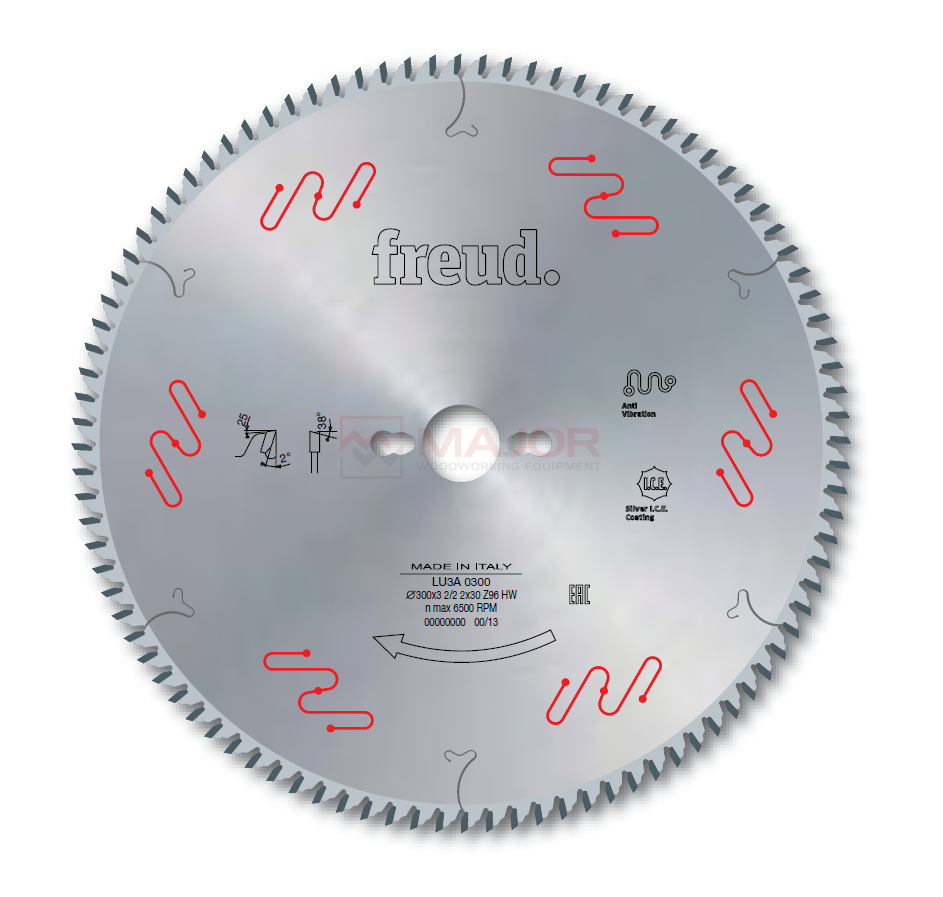

LU3A - Saw Blades for Melamine Panel Cutting High Grind No Scorer Required

LU3A - Saw Blades for Melamine Panel Cutting High Grind No Scorer Required

To size bilaminated panels, with perfect finishing on both sides without the
employment of the scoring saw blade.

Machines

Circular vertical saws, panel-sizing machines, portable machines.

Features

ATB 38^o tooth, with variable cutting angle according to the diameter.

Material

Bilaminated panels with extremely fine coatings,veneered panels.

$180.00 – $272.00

Additional Information

SKU	D	Bore	B (w)	b	Z
LU3A 0200	250	30	3.2	2.2	80
LU3A 0300	300	30	3.2	2.2	96
LU3A 0400	350	30	3.5	2.5	108

CUTTING SPECS

Tooth features

Maximum depth of cut based on the blade diameter.

SPECIAL FEATURES

Reduced Friction: Silver I.C.E. Coating

A high performing and anticorrosive coating to maintain the blade temperature low during the working process.
The non-stick feature improves chip ejection and notably reduces resin build-up, significantly re-ducing friction and extending the life time of the blade.

Improved Precision: Anti-Vibration Slots for the Perfect Finishing

Body slots laser cut with freud innovative technology.
Also available with thermoplastic polyurethane filling, that considerably reduces vibration and minimizes noise.
