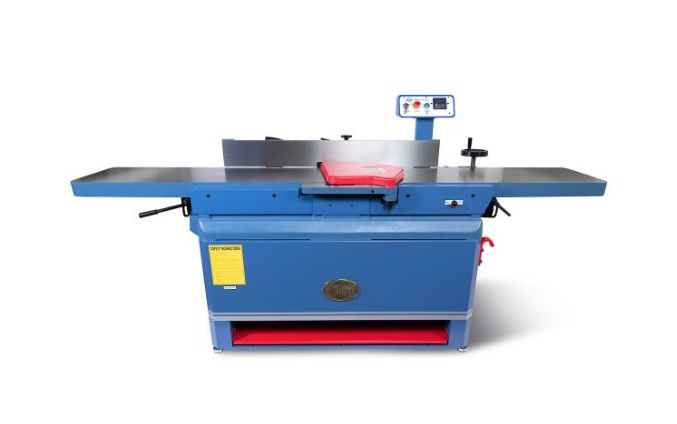

Oliver 4260 12'' Jointer
Industrial Designed Parallelogram Jointer in 12”.
- Extra-long precision ground tables provide a stable work surface.
- Fully enclosed cabinet for better dust management.
- Built-in mobile base with lockable wheels.
- Helical cutter head includes German-made carbide inserts.
- Carbide inserts are indexed for quick changing.
- Parallelogram design produces smooth accurate cuts.

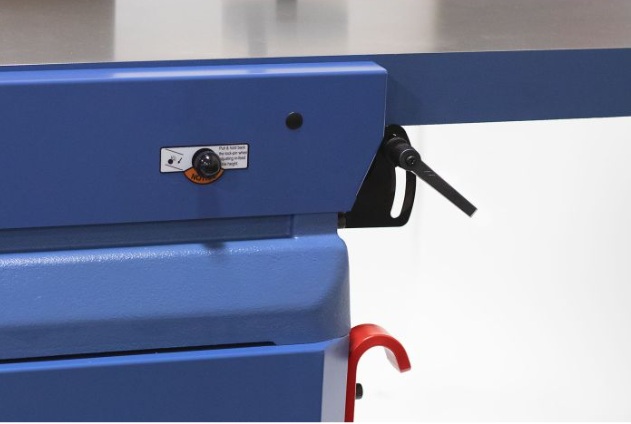

- Front mounted hand wheels for quick precise adjustments.

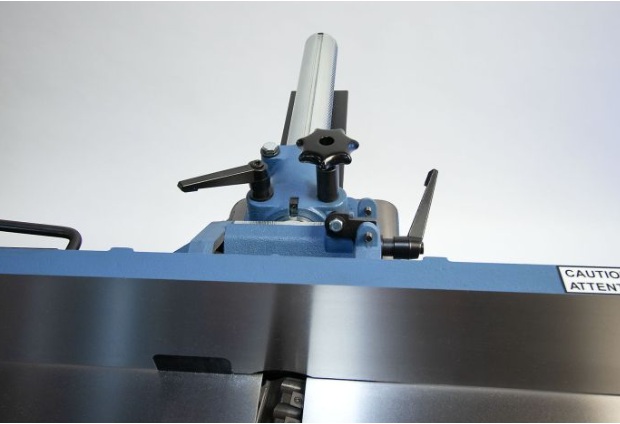

- Extra-long precision ground fence tilts 45 degrees both directions with stops.
- Rack and pinion fence adjustment for quick easy set-up.
- High mounted controls include emergency stop.
- TEFC motor available in single or three-phase.
Additional Information
| Stock Number | 4260 |
|---|---|
| Motor | 5hp 415v |
| Infeed Table Travel | 3/4” |
| Cutterhead Speed | 6,000 RPM |
| Number of Knives (helical) | 84 Inserts |
| Maximum Depth of Cut | 1/8″ |
| Rabbeting Capacity | 3/4” |
| Dust Port Diameter | 6” |
| Table Dimensions | 88”L x 12-1/8”W |
| Table Height | 34” |
| Fence Dimensions | 60-1/4”L x 5-3/8”W |
| Fence Tilts | 135° , 90° & 45° |
| Positive Stops | 90° and 45° |
| Footprint – Base | 21-1/2” x 50-1/2” |
| Footprint – with Table | 88” x 50-1/2” |
| Cutterhead | Helical Design with TOK |
