SCM Suction Lifter
Main Advantages
- Reducing manual labour and heavy lifting on operator
- Rapid and easy panel positioning onto CNC Router, Beam Saw or Wall Saw
- Maximum efficiency of the workpiece clamping
- Easy to install with reduced dimensions
Additional Information
Lifter – 400V/50Hz N. 1
TECHNICAL FEATURES:

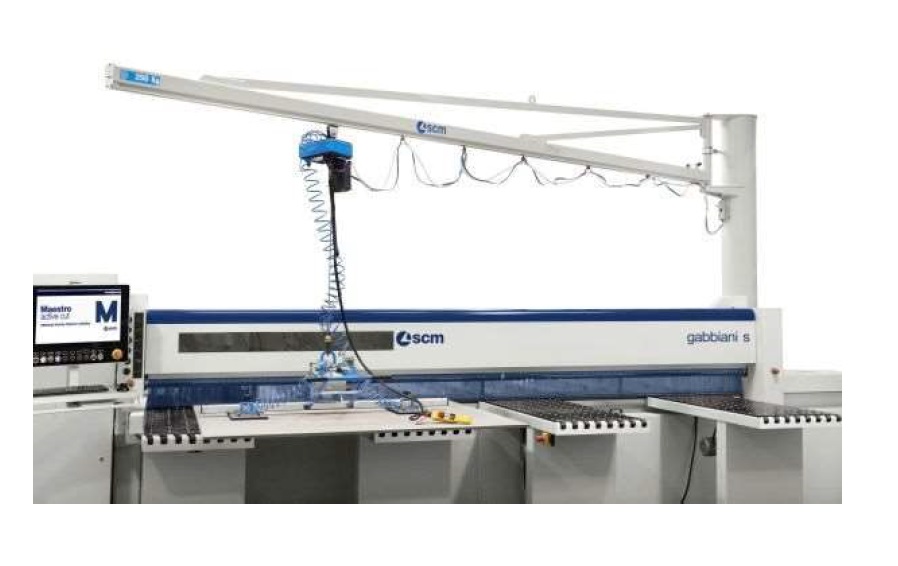

Structure
Column jib crane, 250 kg lifting capacity (for chipboards and
MDF panels, lifting capacity changes depending on material thickness
and type)

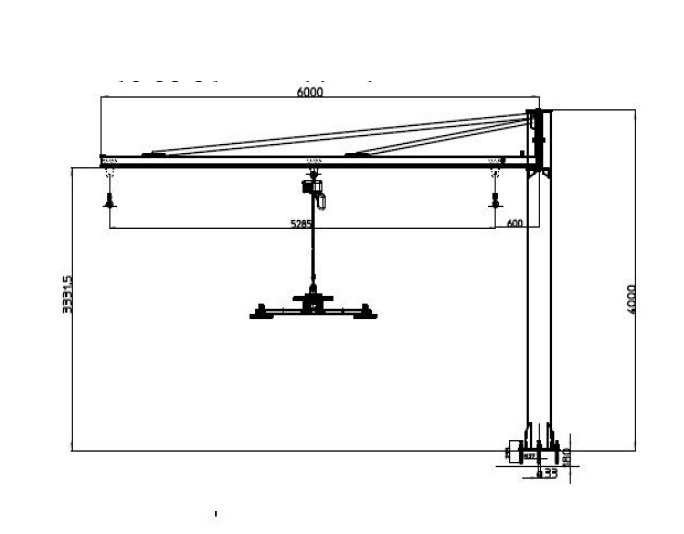

Arm length: 6 metres
Total height of column: 4 metres
Under beam height: 3,33 metres
Base plate for anchoring on to industrial flooring
Positioning brake
Enclosed electric line
Pneumatic air kit for suction power
Chemical tubes kit complete with bolts
Packing
Hoist
FEM class 2 metres
Single Electric chain hoist, VHT brand, K2CN1S model
Version with eyebolt suspension, FEM 2 metres class
Single lifting speed: 4 m/min.
Clutch overload device
Vacuum lifting device for chipboard panels/mdf
panels/laminated materials/covered panels
Suction pad for panels with compressed air supply
Structure with 0°/90° manual overturning
Power by multi-stage vacuum pump with compressed air
Air consumption: 530 Nl/min.
No. 2 suction pads 500×200 mm with seals
Handle with commands for the gripping and the releasing of
the panels
Acoustic alarm system for signaling a decrease in the
vacuum
Pre-vacuum tank
Control system for material loading
Maximum operating pressure: 8 bar
